Brodit Accessories 216230

Brodit Accessories 216230.

Dit Brodit-onderdeel (Accessories) is een aanvulling op het Brodit-bevestigingssysteem en breidt de mogelijkheden van uw houder, ProClip of Pedestal Mount uit.

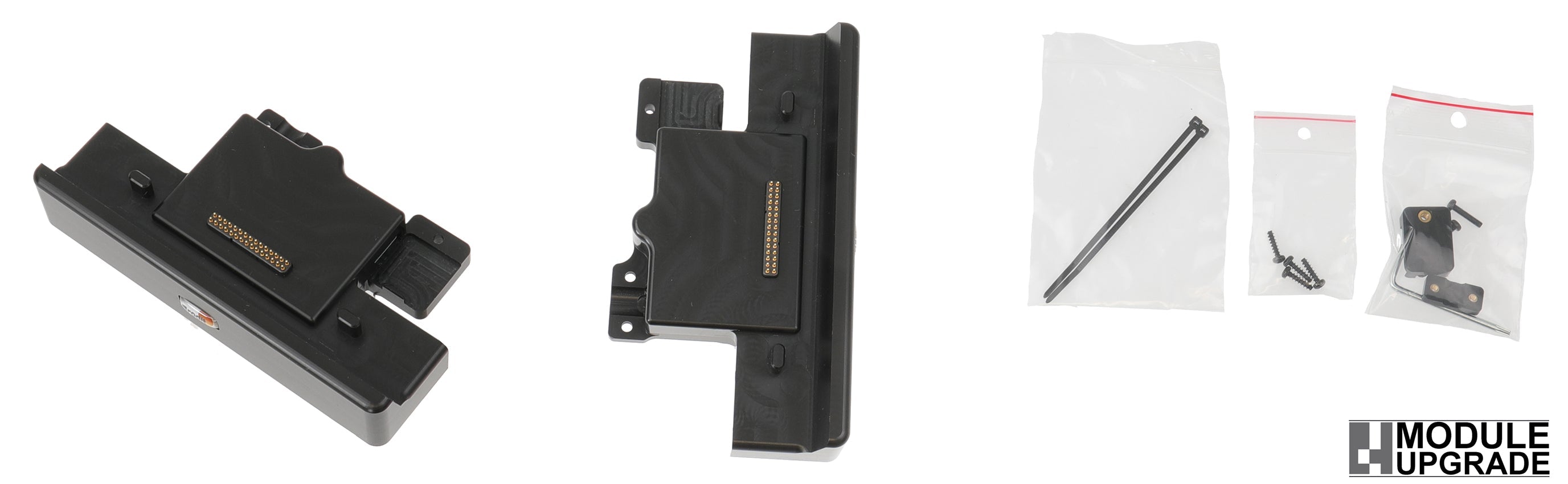

Charging module with USB-A Host and DC-connector 5,5x5,1-1,5mm for Module Upgrade holders. (No cables included.)

• Onderdeel van het Brodit-bevestigingssysteem
• Voor combinatie met houders of montageplatformen
• Eenvoudig te installeren
• Brodit-kwaliteit uit Zweden

Productspecificaties:

• Hoogte: 73 mm
• Breedte: 135 mm
• Diepte: 29 mm
• Volume: 286 cm³
• Gewicht: 189 g

Geschikt voor:

• Pepperl+Fuchs Tab-IND 10
• Pepperl+Fuchs Tab-IND 08
• Zebra ET56 8.4
• Zebra ET56 10.1
• Zebra ET55 8.3
• Zebra ET55 10.1
• Zebra ET51 8.4
• Zebra ET51 10.1
• Zebra ET50 8.3
• Zebra ET50 10.1

Productinformatie van fabrikant (Engels):

Charging module mit USB-A-Host port and DC barrel jack port 5,5x5,1-1,5mm. The product is compatible with Module Upgrade holders, this means that you can updrade such a holder with a charging module if desired. (Cables not included)

The USB-A port can be powered in two different ways: When the cradle is EXTERNALLY powered with 12Vdc, the USB-A port will supply 1.5A at 5Vdc. When the cradle is used WITHOUT an external 12Vdc supply, the USB-A port will supply 1.1A at 5Vdc. When using this option the accesory connected to the USB-A port will draw power from the ET5x and reduce the battery more quickly.

With a USB-A port for USB Host data transfer (cable not included) and a DC barrel jack port 5,5x5,1-1,5mm for power supply via pogo pins. Cables for power supply are NOT included, add one of the following products in order to get charging for your device:
Item no. 941022  Cable with cig-plug, straight cable.12V out, 2,5A. 12/24V in.
Item no. 941021  Cable for fixed installation. 12V out, 2,5A. 12/24V in.
Item no. 216240  Alfatronix Converter 12V out, 48V in, with 2 m cable.
Item no. 216249  12V Power supply, with 220V connector, worldwide adapters included.
