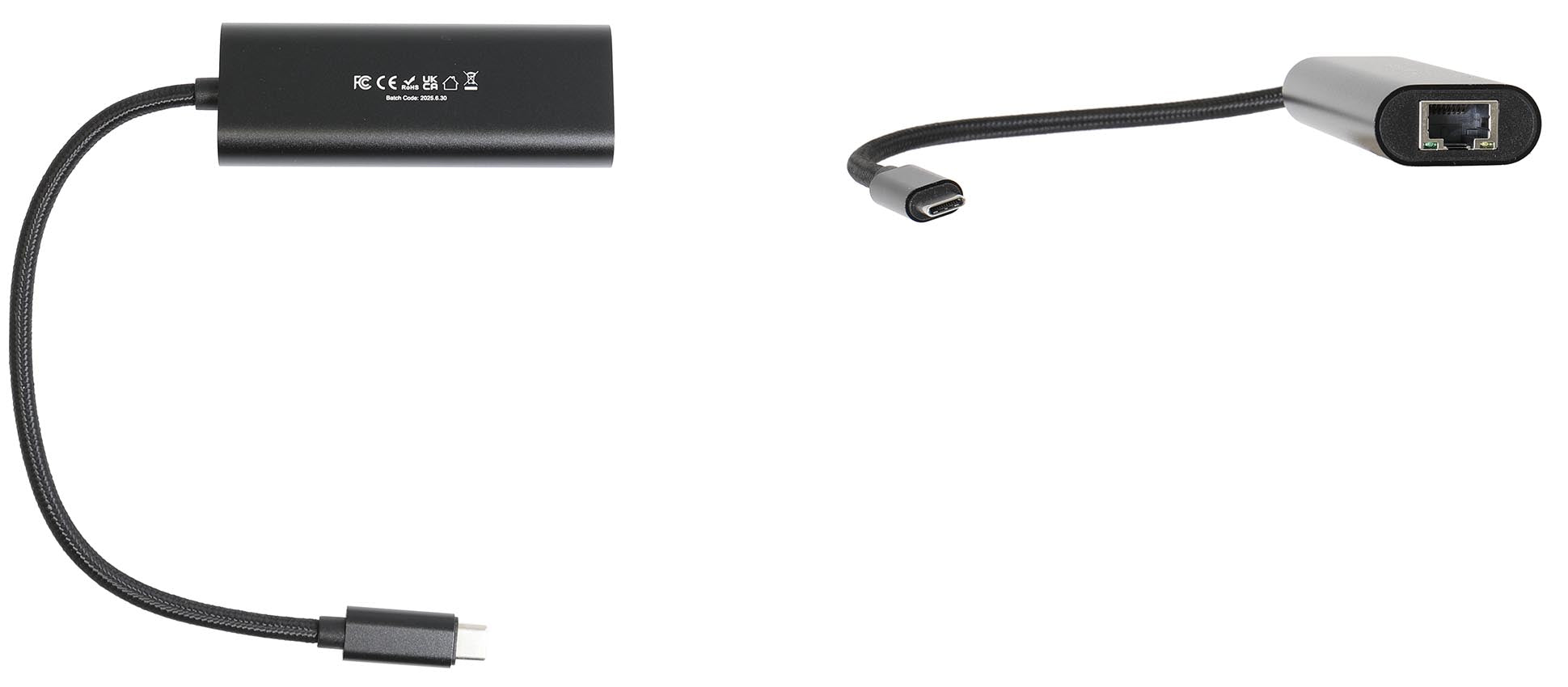

Brodit PoE to USB-C Adapter 217158

Brodit PoE to USB-C Adapter 217158.

Dit Brodit-onderdeel (PoE to USB-C Adapter) is een aanvulling op het Brodit-bevestigingssysteem en breidt de mogelijkheden van uw houder, ProClip of Pedestal Mount uit.

PoE to USB-C Adapter

• Onderdeel van het Brodit-bevestigingssysteem
• Voor combinatie met houders of montageplatformen
• Eenvoudig te installeren
• Brodit-kwaliteit uit Zweden

Productspecificaties:

• Hoogte: 34 mm
• Breedte: 90 mm
• Diepte: 16 mm
• Volume: 49 cm³
• Gewicht: 45 g

Productinformatie van fabrikant (Engels):

This is a compact PoE adapter that converts both power and data from an RJ45 network cable into a USB-C connection. It is designed for fixed installations where a single-cable solution is preferred – providing both charging and network connectivity via Ethernet.

Use case:
Suitable for tablets, phones, and other USB-C devices that are permanently installed and continuously connected – for example in retail environments, information kiosks, and other fixed mounting setups. By combining data and power in a single network cable, cable routing is simplified and the need for separate power adapters is eliminated.

Note: To supply power, the network must support PoE (Power over Ethernet). Without PoE, only data will be transmitted.

Function:
Power input (RJ45): DC 44–57 V ⎓ 350 mA (max)
Power output (USB-C): DC 5 V ⎓ 2 A (max)
Signal input (USB-C): USB 3.1 Gen 1, up to 5 Gbps
Signal output (RJ45): 10/100/1000 Mbps

Material: Aluminum alloy
Cable length: USB-C cable 185 mm
