Brodit Tafelstandaard 736266 - Pepperl+Fuchs Tab-IND 10 / Zebra ET56 10.1 / ET55 10.1 / ET51 10.1

Brodit Tafelstandaard 736266.

De Brodit Tafelstandaard 736266 biedt een stabiele basis voor uw Pepperl+Fuchs Tab-IND 10 of Zebra ET56 10.1, ET55 10.1, ET51 10.1 of ET50 10.1 op een vlakke ondergrond. Ideaal voor gebruik op een bureau, balie of werkplek waar het toestel binnen handbereik moet blijven.

De standaard wordt gebruiksklaar geleverd en heeft een tilt swivel voor het instellen van de ideale kijkhoek. Geschikt voor toepassingen op kantoor, in een ontvangstruimte of als presentatieoplossing.

• Stabiele tafelstandaard voor vaste opstelling
• Tilt swivel voor instelbare kijkhoek
• Geschikt voor professioneel gebruik
• Brodit-kwaliteit uit Zweden

Productspecificaties:

• Hoogte: 247 mm
• Breedte: 313 mm
• Diepte: 81 mm
• Volume: 6262 cm³
• Gewicht: 1304 g

Geschikt voor:

• Pepperl+Fuchs Tab-IND 10
• Zebra ET56 10.1
• Zebra ET55 10.1
• Zebra ET51 10.1
• Zebra ET50 10.1

Productinformatie van fabrikant (Engels):

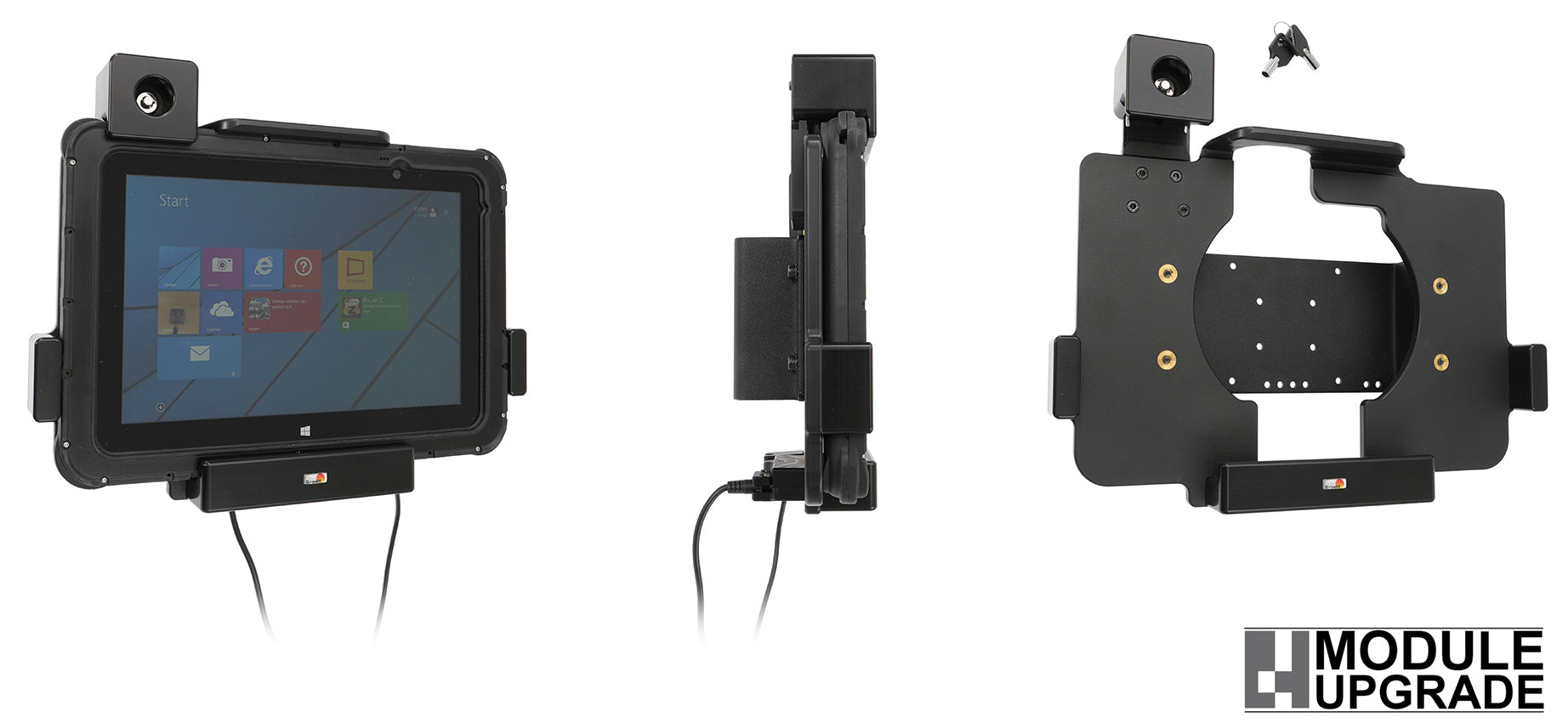

The Zebra ET5x series Module Upgrade Cradles from Brodit are designed to withstand frequent wear and tear in professional every day use, providing a more productive working day and better working environment with your device within sight and reach. Safe, efficient and convenient!

This cradle is the perfect choice when you want to have both power and USB-Host functionality, and to have it sequrely locked in place while easy accessible. Connect a cable to the DC barrel jack port for safe and reliable charging via pogo pins to the tablet and attached accessories (cable not included, sold separately). The USB-A port provides up to 1,5A so even the most demanding extended-range barcode scanner, keyboard, sensor or other accessory can be connected directly to the tablet. The key lock prevents the tablet from being removed by unauthorized personnel, in order to remove the device you will need a key (2 keys included).

The USB-A port can be powered in two different ways: When the cradle is EXTERNALLY powered with 12Vdc, the USB-A port will supply 1.5A at 5Vdc. When the cradle is used WITHOUT an external 12Vdc supply, the USB-A port will supply 1.1A at 5Vdc. When using this option the accesory connected to the USB-A port will draw power from the ET5x and reduce the battery more quickly.

The cradle is customized with a perfect fit for devices in its rugged frame with 30-pin connector, with and without any expansion back module/handstrap (not for integrated scanner). It has a robust design and has been tested for vibrations for use in a normal forklift environment. You have full access to the camera,scanner, buttons and ports while docked. Easy one-hand insertion and removal.

Attach the cradle onto any flat surface or Pedestal Mount in a forklift, truck, distribution vehicle, warehouse, table top etc. Backplate made of steel with 4 mm AMPS and 4 mm VESA 75 standard holes. Made of high grade ABS-, Acetal-plastic and metal. Color: Black. Made in Sweden.

This is a Module Upgrade Cradle, this means that you can upgrade or replace features by using some of the following modules:
Item no. 216228  Spring stud lock
Item no. 216229  Key lock
Item no. 216230  Charging module
Item no. 216251  Extension plate

The cradle features a USB-A port for USB Host data transfer and DC barrel jack port 5,5x5,1-1,5mm for power supply via pogo pins. Cable managment options. Cable for power supply is NOT included with the cradle, add one of the followin products in order to get charging for your device:
Item no. 941023  Cable with cig-plug, straight cable.12V out, 2,5A. 12/24V in.
Item no. 941024  Cable for fixed installation. 12V out, 2,5A. 12/24V in.
Item no. 216240  Alfatronix Converter 12V out, 48V in, with 2 m cable.
Item no. 216249  12V Power supply, with 220V connector, worldwide adapters included.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
